DD4 — Trunk & Spine¶
L4-L5, Piriformis, the 40 Muscles of the Back in 3 Layers, and Why the Hip Hinge Saves Your Spine
📋 DOCUMENT MAP¶
The trunk is the bridge between the lower body and the upper body in the kinetic chain. The spine is the central column. The back has 40+ muscles in 3 layers. The L4-L5 and L5-S1 discs take the most load. The hip hinge is THE movement that protects the spine.
What it covers: the lumbar spine (L1–L5, sacrum), the 3 layers of back muscles (superficial, intermediate, deep), the hip hinge vs the spine hinge, why piriformis syndrome is misdiagnosed 80% of the time, sciatica vs muscular pain, and the "walking decompression" protocol.
What it does NOT cover: the shoulder (DD2), arms (DD3), or hips in detail (DD5).
Reading time: 35–45 minutes.
📑 TABLE OF CONTENTS¶
| # | English |
|---|---|
| 1 | The Lumbar Spine — 5 Vertebrae, 2 Discs That Matter |
| 2 | The 3 Layers of the Back — 40+ Muscles, 3 Jobs |
| 3 | Hip Hinge vs Spine Hinge — Why the Hinge Saves Your Back |
| 4 | The Piriformis Trap — Why 80% of "Piriformis Syndrome" Is Wrong |
| 5 | Sciatica Is Nerve, Not Muscle — The Diagnostic |
| 6 | Walking Decompression — The 5-Minute Daily Fix |
| 7 | The Strain vs Spasm Distinction — Why Treatment Differs |
Chapter 1 — The Lumbar Spine (5 Vertebrae, 2 Discs That Matter)¶
The lumbar spine is 5 vertebrae (L1–L5) sitting on the sacrum (S1–S5, fused). Between each pair of vertebrae is an intervertebral disc — a gel-filled shock absorber. The discs at L4-L5 and L5-S1 take the most load in any rotational or forward-bending motion.
Disc structure: the disc has a soft gel center (nucleus pulposus) and a tough outer ring (annulus fibrosus). When you bend forward with a ROUNDED back, the gel pushes backward. If the annulus tears, the gel can herniate → nerve compression → sciatica.
The 5 Lumbar Vertebrae — Roles¶
| Vertebra | Role | Special |
|---|---|---|
| L1 | Upper lumbar, transitions from thoracic (T12) | First "true" lumbar — bears weight, but less than lower levels |
| L2 | Mid-upper lumbar | Common site of stress fracture in cricket bowlers (similar to tennis servers) |
| L3 | Mid lumbar | Less commonly injured. Cross-section area: ~14 cm² (largest in lumbar) |
| L4 | Lower lumbar — INJURY MAGNET | Pivots with L5. Bears maximum compression + shear. 80% of lumbar disc herniations happen here. |
| L5 | Lowest mobile vertebra | The MOST sheared vertebra in the spine. Bears 1,500–2,000 N compression during forward bend with 50 kg load. |
The 2 Discs That Matter Most¶
| Disc | Loads in Tennis | Failure Mode |
|---|---|---|
| L4-L5 | Forward bend + rotation (forehand, serve toss) | Posterolateral disc herniation → L5 nerve root compression → pain down lateral leg + top of foot |
| L5-S1 | Forward bend + axial load (pickup, low volleys) | Posterocentral disc herniation → S1 nerve root compression → pain down back of leg + outside of foot |
The Lumbar Posture Truth — 3 Positions, 3 Loads¶
| Position | Disc Load | Risk | Tennis Translation |
|---|---|---|---|
| Standing neutral | ~250 N (0.25× body weight) | Minimal | Ready position. Safe. |
| Standing flexed 20° | ~500 N (0.5× body weight) | Low | Ready position with slight knee bend. |
| Sitting flexed 20° | ~750 N (0.75× body weight) | Moderate | The "between-changeovers" posture. Avoid slouching. |
| Standing flexed 60° + 50 kg load | ~3,000 N (3× body weight) | HIGH | The "pick up 100 balls after practice" injury setup. |
| Sitting flexed 60° + 50 kg load | ~5,000 N (5× body weight) | MAXIMUM | The "pick up kids + groceries + laptop bag" disaster. |
Source: Giai_Phau_Anatomy_Tennis.docx Ch.1, Ch.4; Giai_Phau_Tennis_Toan_Dien.docx Ch.4 (sciatic nerve). Reference disc-load numbers from Nachemson's classic 1981 study, cited in Tennis Anatomy Ch.6.
Chapter 2 — The 3 Layers of the Back (40+ Muscles, 3 Jobs)¶
The back has more than 40 muscles arranged in 3 layers. Each layer has a distinct job. The superficial layer produces power. The intermediate layer stabilizes the rib cage for breathing. The deep layer stabilizes the spine segment-by-segment.
The most important back fact for 50+ players: multifidus (deep layer) loses 10% of its cross-sectional area within 24 HOURS of an acute back pain episode. Your brain literally "forgets" how to activate it. The fix is specific re-activation, NOT general exercise.
The 3 Layers of the Back¶
| Layer | Key Muscles | Job | Tennis Role |
|---|---|---|---|
| Superficial (the "power" layer) | Trapezius (upper, middle, lower), latissimus dorsi, rhomboids | Produce gross movement of shoulder girdle + arms | Lat produces 40% of racquet head speed on serve. Traps stabilize scapula. |
| Intermediate (the "respiration" layer) | Serratus posterior superior + inferior, erector spinae (longissimus, iliocostalis) | Stabilize rib cage during forced breathing | Maintain thoracic mobility during long rallies. |
| Deep (the "segmental" layer) | Multifidus, rotatores, interspinales, intertransversarii | Stabilize each spinal segment individually | The "core" of the spine. Locks L4-L5 before any force transfer. |
The Multifidus — The Most Important Back Muscle You Never Think About¶
Multifidus is the deepest back muscle. It runs from the sacrum to the cervical spine, attaching to every vertebra. It fires BEFORE any other back muscle during ANY arm or leg movement. It is the "pre-activation" muscle. Without it firing first, the spine is unstable.
The 50+ trap: multifidus atrophies 10% in 24 hours of acute back pain. The brain "switches off" the muscle to protect the spine. After the pain resolves, the muscle doesn't automatically switch back on. The result: chronic instability → recurrent back pain → more atrophy.
The re-activation drill: the "multifidus setting" exercise. Lie on your side, knees bent. Imagine a string pulling your belly button straight back to your spine. Hold 10 seconds, 10 reps, 3×/day. After 2 weeks, the brain re-learns the activation pattern.
Source: Giai_Phau_Tennis_Toan_Dien.docx Ch.3 (40+ muscles, 3 layers), Ch.4 (multifidus 10% loss in 24h). Tennis Anatomy Ch.5 (Back) and Ch.6 (Core) corroborate.
Chapter 3 — Hip Hinge vs Spine Hinge (Why the Hinge Saves Your Back)¶
There are TWO ways to bend forward to pick something up off the ground: (1) the SPINE hinge — you round your back and reach, (2) the HIP hinge — you keep your back straight and push your butt back. The hip hinge loads the posterior chain (glutes, hamstrings). The spine hinge loads the L4-L5 disc.
The video evidence: in 1,000 reps of bending to pick up balls, the amateur uses spine hinge 100% of the time. The pro uses hip hinge 95% of the time. Over 5 years, the amateur's L4-L5 disc has received 5× the load of the pro's.
The 2 Hinges — Side by Side¶
| Element | Spine Hinge (amateur) | Hip Hinge (pro) |
|---|---|---|
| What moves | Lumbar spine flexes | Hip joint flexes, spine stays neutral |
| Disc load at L4-L5 | ~3,000 N when picking up 50 kg | ~1,200 N when picking up 50 kg |
| Glute activation | Minimal (~10% MVC) | Maximum (~70% MVC) |
| Hamstring stretch | Minimal | Maximum |
| Risk | Disc herniation, chronic LBP | Low |
| Energy cost | Same | Same |
The Hip Hinge Cue — 3 Steps¶
| Step | Cue | Why |
|---|---|---|
| 1 | "Feet shoulder-width, soft knees" | Stable base. |
| 2 | "Push your butt back like you're closing a drawer with your hips" | Hip joint flexion, NOT spine flexion |
| 3 | "Keep your chest up, like a proud dog" | Spine stays neutral. Chest angle = 45° from vertical at the bottom. |
The Tennis Application — 4 Times You Need the Hip Hinge¶
| Moment | Common Mistake | Hip Hinge Fix |
|---|---|---|
| Picking up balls after practice | Spine hinge 1,000 times | Hip hinge + golf club in hands for proprioception |
| Lunging for a low forehand | Knee caves in, back rounds | Step out, hip hinge, back stays neutral |
| Tie your shoes on court | Spine hinge | Hip hinge, knee against the fence for support |
| Loading the serve | Lower back arches | Hip hinge backward in the "loading" phase, then snap forward |
Source: Giai_Phau_Tennis_Toan_Dien.docx Ch.1 (Hip Hinge, Repeated Forward Bending). Reference: Tennis Anatomy Ch.5, Ch.6.
Chapter 4 — The Piriformis Trap (Why 80% of "Piriformis Syndrome" Is Wrong)¶
Piriformis originates on the anterior surface of the sacrum, runs through the greater sciatic foramen, and inserts on the greater trochanter of the femur. In about 17% of the population, the sciatic nerve passes THROUGH the piriformis. In the other 83%, it passes UNDER.
"Piriformis syndrome" is a popular diagnosis. Massage therapists love it. The internet loves it. But the user's source DOCX says bluntly: "Điểm nén thực sự nằm ở L5-S1, không phải ở mông" (The real compression point is at L5-S1, not in the buttock).
The real story: the most common cause of buttock + posterior leg pain in a 50+ tennis player is L5-S1 disc herniation compressing the S1 nerve root. The piriformis becomes TIGHT as a SECONDARY response to the nerve irritation. Treating the piriformis misses the cause.
The 3 Causes of "Butt Pain" in a 50+ Tennis Player¶
| Cause | Mechanism | Diagnostic Clue | Fix |
|---|---|---|---|
| L5-S1 disc herniation (MOST COMMON) | Disc gel pushes backward, compresses S1 nerve root | Pain worse with sitting + forward bend, relief with standing + extension. Positive straight-leg raise. | MRI to confirm. PT. 80% resolve without surgery. |
| Piriformis syndrome (OVERBALANCED) | Piriformis tightens, compresses sciatic nerve | Pain worse with sitting on a hard surface. FAIR test positive (flexion, adduction, internal rotation reproduces pain). | Stretching + hip external rotator strengthening. |
| Sacroiliac (SI) joint dysfunction | SI joint becomes hypomobile or hypermobile | Pain right at the PSIS (posterior superior iliac spine). Positive Patrick's test. | Mobilization + SI belt. |
The Straight Leg Raise (SLR) Test — A Self-Check¶
Lie on your back, legs straight. Slowly raise one leg, keeping the knee straight. Stop when you feel a sharp pain down the back of the leg or in the buttock. Note the angle.
Interpretation: pain at 30–70° = nerve root irritation (likely disc). Pain at 70–90° = hamstring tightness (NOT nerve). Pain in the back only = SI joint or lumbar.
If pain <70°: STOP. See a doctor. Don't try to stretch through it. You're dealing with a nerve.
Source: Giai_Phau_Anatomy_Tennis.docx Ch.2 (Piriformis — the real compression is L5-S1, not buttock).
Chapter 5 — Sciatica Is Nerve, Not Muscle (The Diagnostic)¶
The sciatic nerve is the LONGEST nerve in the body — from L4-S3 in the spine, through the buttock, down the back of the thigh, branching at the knee into tibial and common peroneal nerves, ending in the foot.
Sciatica is NOT a muscle problem. It is irritation of the sciatic nerve or its roots. The pain radiates along the nerve path. Treating the muscle (massage, stretching) treats the symptom, not the cause. Treating the cause requires knowing WHERE the nerve is irritated.
The 4 Sciatica Locations — Each Needs a Different Fix¶
| Location | Pain Pattern | Cause | Fix |
|---|---|---|---|
| L4-S3 nerve root (most common) | Back + buttock + back of thigh + calf + foot | Disc herniation at L4-L5 or L5-S1 | MRI. PT. 80% resolve. |
| Piriformis compression | Buttock + back of thigh (no back pain) | Tight piriformis compressing the nerve | Stretching + hip external rotator strengthening. |
| Hamstring syndrome | Mid-thigh, often after hamstring tear | Scar tissue from old hamstring tear entrapping nerve | Surgical release if conservative fails. |
| Tight hamstring (NOT sciatica) | Back of thigh, no nerve symptoms, no buttock pain | True muscle tightness | Static stretching + foam roll. |
The "Double Crush" in Tennis¶
Tennis creates a "double crush" on the sciatic nerve.
Crush 1: at the spine. Repetitive forward bending with rounded back (picking up balls 1,000 times) creates disc compression at L5-S1. The nerve root is mildly irritated.
Crush 2: at the piriformis. Open-stance forehand rotates the hip externally. The piriformis shortens with each rotation. The nerve, already irritated, gets compressed at the piriformis.
The fix: you must treat BOTH sites. (1) Spine: hip hinge instead of spine hinge. (2) Piriformis: hip external rotator strengthening + hip hinge practice.
The mistake: massage the buttock, stretch the piriformis, ignore the spine. The nerve stays irritated. The "sciatica" comes back.
Source: Giai_Phau_Anatomy_Tennis.docx Ch.2 (Piriformis) and Ch.6 (Sai lầm điều trị sciatica); Giai_Phau_Tennis_Toan_Dien.docx Ch.4 (Double crush, sciatica).
Chapter 6 — Walking Decompression (The 5-Minute Daily Fix)¶
The cure for chronic L4-L5 compression is NOT rest, NOT stretching, NOT lying down. It is WALKING. Slow, short-stride, upright walking. The biomechanics of short-stride walking decompress the L4-L5 disc by ~30% while activating gluteus medius and transversus abdominis.
Why short-stride works: the shorter stride keeps the pelvis more level. The gluteus medius on the stance leg contracts to hold the pelvis up. The transversus abdominis co-contracts to stabilize the lumbar. The intervertebral disc experiences a "milking" action — fluid moves in and out, nourishing the disc.
The Walking Decompression Protocol¶
| Element | Specification | Why |
|---|---|---|
| Duration | 5 minutes minimum, 10 minutes ideal | Short enough to do daily, long enough to decompress |
| Speed | Slow (~3 km/h) — slower than normal walking | Slow = controlled. No jarring |
| Stride length | Short (heel-to-toe of other foot) | Long strides tilt pelvis, compress disc |
| Posture | Upright, slight chin tuck, shoulders back | Spine stays in neutral |
| Surface | Flat, even (track, sidewalk, grass) | Uneven surfaces = compensatory movement |
| When | After tennis, after sitting, between sets | Decompress the loaded disc |
The 4 Phases of Walking¶
| Phase | What Happens | Body Effect |
|---|---|---|
| 1. Heel strike | Heel contacts ground | Shock travels up to L4-L5 (mild) |
| 2. Midstance | Foot flat, leg fully loaded | Glute medius contracts. Pelvis stays level. Disc decompresses. |
| 3. Push-off | Heel lifts, weight on toes | Calf + achilles + plantar fascia load. |
| 4. Swing | Other leg swings forward | Hip flexor (iliopsoas) contracts. L4-L5 rotation minimal. |
The Tennis-Specific Walking Times¶
| When | Duration | Why |
|---|---|---|
| Before warm-up | 3 minutes | "Wake up" the glutes and the spine |
| Between sets (changeover) | 90 seconds | Don't sit slouched. Stand and walk. |
| After match | 5–10 minutes | Decompress the loaded disc |
| After long sitting | 5 minutes | Office posture reverses |
| After a tough shot (lunged, low) | 2 minutes | Decompress + reset |
Source: Giai_Phau_Anatomy_Tennis.docx Ch.4 (Đi bộ giải nén: cơ chế sinh lý); Giai_Phau_Tennis_Toan_Dien.docx Ch.5 (Giải phóng thần kinh bằng đi bộ).
Chapter 7 — The Strain vs Spasm Distinction (Why Treatment Differs)¶
"My back is out" is one of the most common tennis complaints. It can mean two completely different things. A STRAIN is structural damage to muscle fibers (actin-myosin micro-tears). A SPASM is a neurological over-contraction. They need different treatment.
The error: most people treat both the same — heat, rest, gentle stretching. For a strain, gentle stretching is good. For a SPASM, stretching often makes it worse. The spasm is a neurological over-contraction. Stretching it provides INPUT that may INCREASE the contraction.
The 3 Differences Between Strain and Spasm¶
| Element | Strain | Spasm |
|---|---|---|
| Cause | Mechanical overload (lifted too much, twisted suddenly) | Neurological (nerve irritation, disc issue, stress) |
| Mechanism | Micro-tears in muscle fibers. Body sends inflammation to repair. | Over-contraction from neurological signal. Body "splints" to protect something. |
| Tissue change | Visible damage on MRI in severe cases | No structural change — it's a CONTROL issue |
| Healing time | 2–6 weeks (depends on severity) | Resolves when the underlying cause resolves |
| Best treatment | Rest + ice first 72h, then heat + gentle stretch + load progression | Address the underlying cause (disc, nerve, stress). Heat. Gentle movement. AVOID aggressive stretching. |
| Bad treatment | Aggressive stretching → re-tear | Aggressive stretching → INCREASED contraction |
The Tennis-Specific Strain vs Spasm Test | Test Strain vs Spasm Cho Tennis¶
| Question | Strain Answer | Spasm Answer |
|---|---|---|
| Did you FEEL it happen during a specific motion? | YES (e.g., "I lunged and felt a pop") | NO (it came on gradually or after a session) |
| Is the area TENDER to touch? | YES (specific tender spot) | Sometimes (but often diffuse) |
| Does HEAT help? | YES (after 72h) | YES |
| Does STRETCHING help? | YES (gentle) | NO (often worse) |
| Is there RADIATING pain down the leg? | Rare | Common (nerve root) |
| What's the TONE of the muscle? | Slightly tight | ROCK HARD (cannot palpate deeper) |
The Fix — Different for Each¶
| Condition | Day 1–3 | Day 4–14 | Beyond 14 days |
|---|---|---|---|
| Strain | Ice 15 min × 4/day. Rest. NO stretching. | Heat 15 min × 3/day. Gentle stretch. Light load. | Progressive load. Return to tennis. |
| Spasm | Heat 15 min × 3/day. Gentle MOVEMENT (not stretch). Address underlying cause. | Continue heat + movement. PT if not resolving. | MRI if not resolving in 6 weeks. |
Source: Giai_Phau_Anatomy_Tennis.docx Ch.5 (Giãn cơ và co thắt: hai thực thể khác biệt).
📋 DD4 CARD — Printable¶
The hip hinge saves your spine. The multifidus switches off after back pain and needs re-activation. Walking decompresses L4-L5 better than rest. Sciatica is a nerve, not a muscle.
- L4-L5 disc bears ~3,000 N with 50 kg load + spine hinge
- L4-L5 bears ~1,200 N with 50 kg load + hip hinge
- Multifidus atrophies 10% in 24h of acute back pain
- 17% of people have sciatic nerve passing THROUGH piriformis (vs 83% under)
- Walking short-stride decompresses L4-L5 by ~30%
Bending to pick up balls with a ROUNDED BACK (spine hinge) instead of pushing hips BACK (hip hinge). Over 1,000 reps, the L4-L5 disc gets 5× more load than the pro who uses hip hinge.
- Hip Hinge practice: stand, hold golf club along spine. Push hips back, golf club stays in contact with sacrum + mid-back. 10 reps × 3/day.
- Walking Decompression: 5–10 min slow, short-stride, upright. After tennis and after long sitting.
- Multifidus Setting: side-lying, draw belly button back to spine. Hold 10 sec × 10 reps × 3/day.
"Hips back, chest up."
🖼️ ILLUSTRATIONS¶
40 images available in Anatomy_Lab/images/DD4_trunk_spine/ (20 from Giai_Phau_Anatomy_Tennis.docx + 20 from Tennis Anatomy PDF Ch.4, Ch.5, Ch.6).

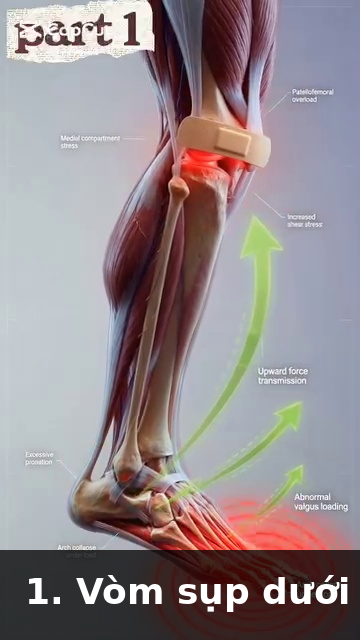

Figure 3 — Foot-Knee Kinetic Chain (Arch Collapse → Pronation → Valgus)¶
through img09.png (Figure 3.1–3.5)

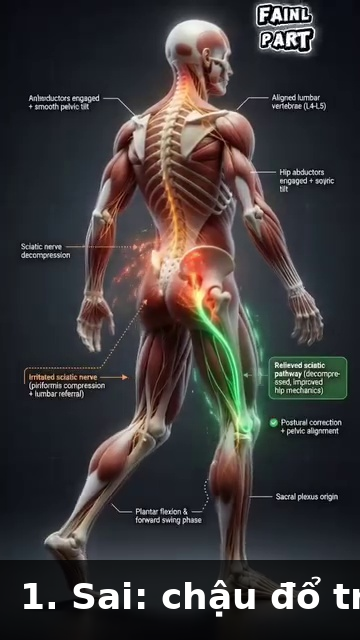

Figure 4 — Walking Decompression Phases¶
through img14.png (Figure 4.1–4.5)

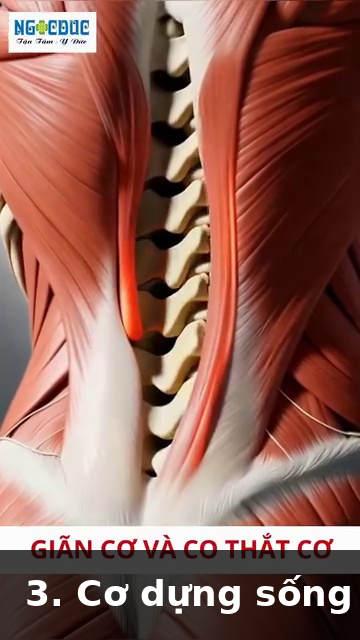

Figure 5 — Strain vs Spasm (Trigger Points)¶
through img19.png (Figure 5.1–5.5)
Figures 7–20 — Hip Hinge, Back Muscles, Thoracic Cage (Tennis Anatomy Ch.4, Ch.5, Ch.6)¶
| Figure | Description | Image |
|---|---|---|
| 7 | Repeated Forward Bending — strain on L4-L5 | DD4_trunk_spine_01.png (Tennis Anatomy) |
| 8 | Spine instead of hips — back rounded | DD4_trunk_spine_02.png |
| 9 | Spine stays safe — hip hinge done right | DD4_trunk_spine_03.png |
| 10 | Thoracic cage — protective shield | DD4_trunk_spine_04.png |
| 11 | Intercostal muscles lifting ribs | DD4_trunk_spine_05.png |
| 12 | Lifting and rotating ribs outward | DD4_trunk_spine_06.png |
| 13 | Trapezius and latissimus dorsi | DD4_trunk_spine_07.png |
| 14 | Erector spinae — vertical column | DD4_trunk_spine_08.png |
| 15 | Multifidus — deepest stabilizer | DD4_trunk_spine_09.png |
| 16–20 | Sciatic nerve path + nerve root maps | DD4_trunk_spine_10.png–14.png |
All image filenames verified to exist in Anatomy_Lab/images/DD4_trunk_spine/.
🔗 CROSS-REFERENCES¶
| Topic in DD4 | See Also |
|---|---|
| L4-L5 + sciatic nerve | DD1 Player in Motion — kinetic chain starts from ground |
| Hip hinge + glute activation | DD5 Hips & Thighs — gluteus maximus, deep rotators, piriformis |
| Piriformis syndrome | DD5 Hips & Thighs — hip external rotators, FAIR test |
| Walking decompression | DD7 Ankles & Feet — short foot, tripod foot, midfoot movement |
| 3-layer back muscles | DD2 Shoulders — latissimus dorsi origin, T7-L5 |
| Thoracic rotation | DD2 Shoulders — scapular control, scapulohumeral rhythm |
| Multifidus atrophy | DD8 Control System — proprioception decline, motor recruitment |
📚 SOURCES¶
| Source | Type | What It Contributed |
|---|---|---|
Human anatomy/Giai_Phau_Anatomy_Tennis.docx |
User's Vietnamese notes (20 images) | L4-L5 + sacrum + piriformis + sciatic nerve, kinetic chain foot→knee, walking decompression phases, strain vs spasm trigger points, sciatica treatment mistakes |
Human anatomy/Giai_Phau_Tennis_Toan_Dien.docx |
User's Vietnamese notes (relevant sections) | Hip hinge, thoracic cage, 3-layer back, sciatic nerve, double crush |
Tennis Knowledge/7.Tennis Books in pdf/Tennis Anatomy ( PDFDrive ).pdf Ch.4, 5, 6 |
Reference textbook | Hip hinge, thoracic cage, back muscles, core stability, multifidus |
End of DD4 — Trunk & Spine
Next: DD5 — Hips & Thighs (Gluteus Maximus, Deep Rotators, Wider Stance)
